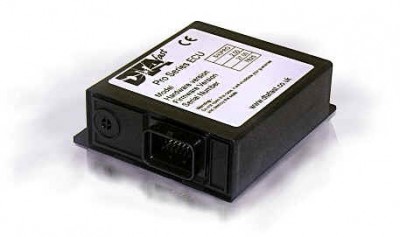

The S40 Pro is an economic ECU designed by DTA for relatively simple wasted spark four cylinder engines using semi-sequential injection. Maintaining the highest manufacturing quality and reliability of more sophisticated ECU''s in the S series range, it provides a lower priced solution for a wide range of applications.
Essential features are not sacrificed to this aim and still maintained are important auxiliary functions to allow this unit to be used on road vehicles where required.
S40 Functions:
Lambda control functions
Turbo control functions
Idle control functions
Launch control
Full throttle shift cut
Flexible input output
CAN networking
Sensor flexibility and crankshaft oscilloscope
Voltage compensation tables
Diagnostics and test features
Other Features:
Sealed latching connectors
Size 115 x 100 x 41mm
Weight 268 gm
All outputs protected against over temperature and over current.
Inputs protected against severe wiring mistakes and accidents
Reverse battery protection
Alternator load dump protection
Input and output features:
Inputs
Crankshaft (magnetic only)
Throttle position
Coolant temperature
Air temperature
Manifold/Barometric Pressure
Lambda
Oil Pressure
Fuel Pressure
Oil Temperature
Battery Volts
3 x User Defined Analogue (shared use)
Launch switch
Shift cut
Undriven wheel speed
Outputs
2 x coil drivers
2 x injector drivers
Tacho
Fuel pump relay
Fan/Aux 2/Turbo pressure valve (shared use)
Idle valve (shared second injector driver)
Shift light
Also available in Ignition Only version - see DTA-401
